Steering lock & opening saddle

Instructions to power up your Arthur, releasing the saddle and securing it with the steering lock

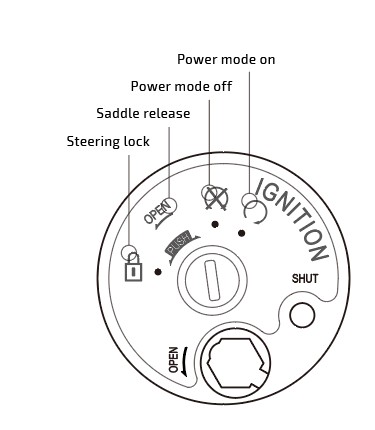

Power On / Off

1. Insert key
2. Turn key clockwise to ON position
3. Press ‘Ready‘ (RHS switches) to activate ride mode

Saddle Release

1. Insert key
2. Gently turn the key slightly further than the OFF position (counterclockwise) to disengage saddle latch

Steering Lock

As an anti-theft precaution, Arthur is fitted with a steering lock after parking.

1. Parking
2. Ensure the handlebars are in the full left position
3. From the OFF position, push down on the key, and rotate anticlockwise to the STEERING LOCK position
4. If the steering lock does not immediately engage, gently rock the handlebars a few degrees left to right while turning the key

Disengaging Steering Lock

1. Handlebars will be in the full left position
2. From the STEERING LOCK position, push down on the key, and rotate key clockwise to the OFF position
3. If the steering lock does not immediately disengage, gently rock the handlebars a few degrees left to right while turning the key
